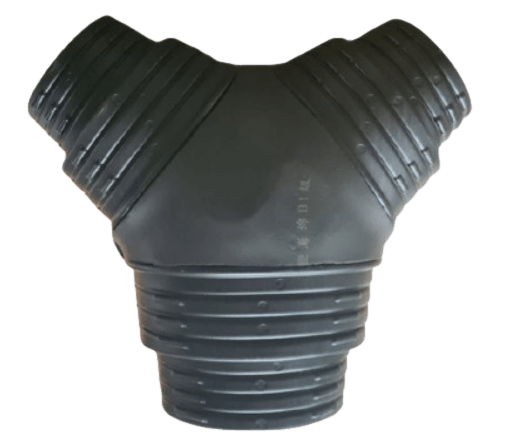

Y3I Insulated Branch Multi 300.250-250.200-250.200

Insulated Y3I Multi Branch
(300-250)(250-200)(250-200)

The Insulated Y2I Multi Branch is a high-performance fitting designed for efficient air distribution in HVAC duct systems. Manufactured with full insulation, it ensures minimal thermal loss and noise reduction while maintaining system integrity.

These are like the chameleons of duct fittings—they adapt to any installation. The method of step fittings makes them incredibly versatile. You can achieve up to 5 different combinations from just one fitting!

Specifications:

• Inlet: 1 × 300 -250 mm

• Outlets: 2 × 250 mm - 2 × 200 mm

• Construction: Insulated, lightweight, corrosion-free, and safe to handle (no sharp edges)

• Compatibility: Suitable for use with all flexible duct types (commercial and domestic)

Key Features:

• Multi-Size Step Fittings – Each branch is stepped, allowing for direct connection to a range of duct sizes without additional adaptors.

• Versatility in Design – Provides up to five connection combinations from a single fitting, reducing the need for multiple branch pieces.

• Energy Efficiency – Insulated body helps maintain airflow temperature and reduces condensation.

• Low Noise Transfer – Insulation also acts as an acoustic barrier, minimising noise breakout into duct runs.

Applications:
Ideal for multi-room air distribution where varied duct sizes are required, such as residential heat transfer systems, office spaces, and commercial HVAC installations.
