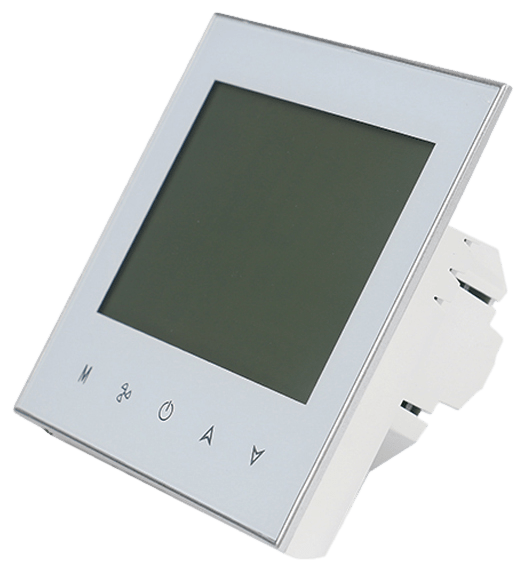

Thermostat Touch Screen
Available from Stock
Description
The ER12D-1 Thermostat is designed for precise temperature control in central air conditioning systems and fan units. Combining intelligent microcomputer technology with a modern large-screen display, it delivers reliable comfort, energy efficiency, and user-friendly operation for residential, commercial, and hospitality applications.
By continuously comparing the indoor temperature with the user’s set temperature, the thermostat automatically controls the fan unit to maintain a comfortable environment while reducing energy consumption.
Key Features
- Suitable for heat transfer, central air conditioning and fan unit control
- Intelligent microcomputer control technology
- Large LCD display with clear operating information
- Supports cooling, heating, and ventilation modes
- Easy operation and reliable performance
Energy Efficient Climate Control
Designed to improve comfort while reducing unnecessary energy use, the ER12D-1 thermostat provides accurate automatic control of heating and cooling systems, helping optimise system performance and operating costs.
Technical Specifications:
- Set Temperature Range: 5 - 35°C
- Sensor: NTC
- Temperature Resolution: +-0.5°C
- Operating Voltage/Frequency: AC200-240V 50/60Hz
- Current: 3A
- IP Rating: IP20
- Ambient Temp: -10 - 60°C
- Dimension: 86x86x13.3mm
- Approval: CE,RoHS,FCC,UKCA
NOTE
This thermostat will not control a motorised damper, please use a Siemens Thermostat
