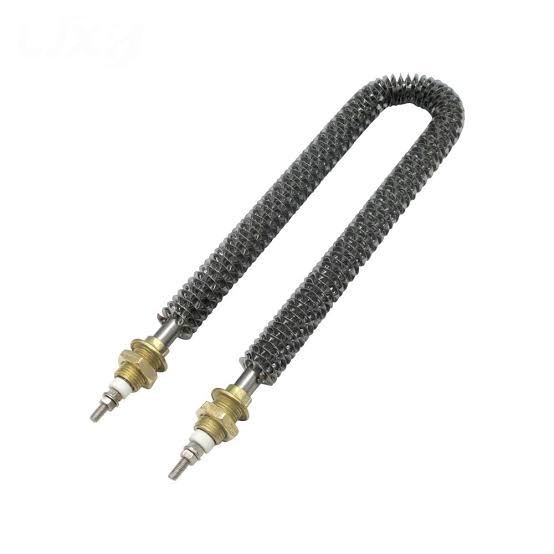

F1141U5000 5000w U Form 1235mm

Manufactured 1 week+

Category

F1141 Series

Code

F1141U5000

Brand

RRP

$191.00

$166.08

Description

Thermofin 10.7mm F1141 Series
F1141U5000 5000 watts
1235 Max reach
63mm between terminals

SHEATH WATTS DENSITY
64kW/m2 (41W/in2) Fin and sheath total 10kW/m2 (6.5W/in2) at 240 Volts.

OPERATING TEMPERATURES
Maximum permissible temperature of element when operating is 400 deg C. Element will not exceed 400 deg C in air with an ambient temperature of 20 deg C. Minimum air velocity of 1 metres/sec through face area of duct is recommended.

CONSTRUCTION
Continuous spiral stainless steel fin brazed 10.5mm dia steel sheathed tubular element. Dia. Over fin 25mm. Finning pitch 5.0mm.

FINISH
Annealed 304 Stainless Steel.

MOUNTING
Nickel plated 16mm conduit bushes x 16mm long thread. Clearance hole of 18mm required. Nuts and washers included
