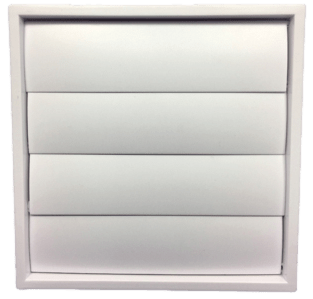

Gravity Grille White
Extra Weather Protection

Spigot Size 125Ø
Face Size 150x150

Suitable for residential and commercial reverse cycle air distribution system

• Extra Weather Protection – Due to back draught louvres
• Scratch Resistant Surface – Made from ABS Plastic
• With Insect Mesh Screen – Made from durable stainless steel
• Easy Installation – Mounts directly to ductwork

Applications

Suitable for residential and commercial reverse cycle air distribution system. Duct can be installed onto the neck located at the rear of the grille.

1. Mark and cut out the hole from ceiling or wall
2. Clip out the individual louvres
3. Remove the insect mesh screen
4. Fix flexible duct to the spigot of diffuser
5. Fix grille to wall or ceiling with screws provided
6. Insert the Insect screen and louvres back into the unit
