MV381 Kitchen Exhaust Roof Fan 4 Pole
Available from Stock
Description
MV models are high capacity roof mounted aerofoil adjustable pitch fans they are kitchen exhaust fans. The all metal fan casing provides a long lasting and robust construction. Suitable for high temperature kitchen exhaust systems.
o Motor: 230-240VAC 50Hz 1 Phase 2.40 Amp Full Load Current 2400 RPM
o Aerofoil adjustable pitch impellers
o Performance tests are in accordance with BS848 Part 1 (1980) and AS2936 - 1987
o Total Motor Wattage: 370 Watts
o Sound level at 3m [dB(A)] Free Field: 54
o Fully weather proof galvanized steel ventilated housing with grease trap connection

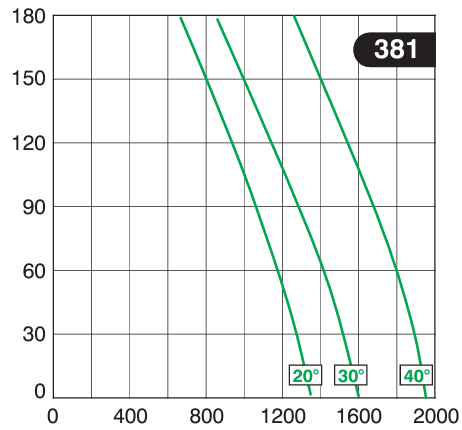

o Free Air Fan Performance: 1800 l/sec @ 40°
o Impellor Diameter: 380mm diameter
o Suitable for high temperature kitchen exhaust systems
o Mountings: 383mm spigot off bottom of fan unit
SPEED CONTROLLER
MV381 fans come complete with a MSC1200 speed controller.
MV381-4E VAR models are variable speed motors with 4 wires. They can be wired with or without the supplied speed controller.
(see attached wiring diagram 4A for both options)
