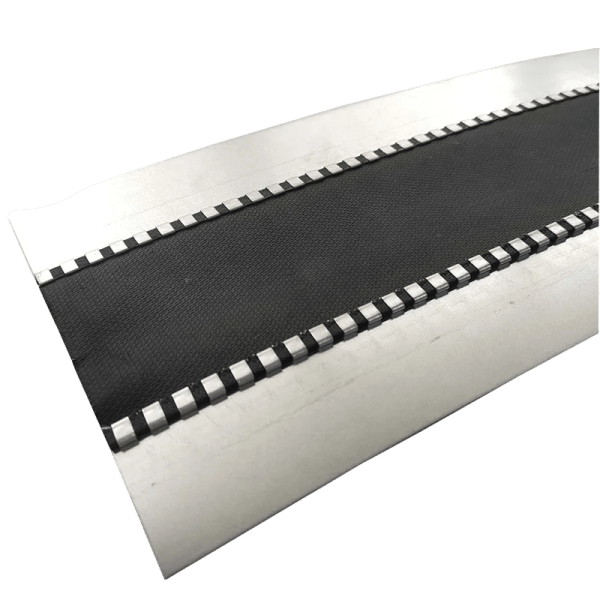

Flexible Duct Connector – Black – 25m Roll

Product Code: FVA2545100NEO

Flexible duct connector for creating a flexible connection between HVAC equipment and rigid ductwork, helping reduce the transfer of noise and vibration through the duct system.

Manufactured from black neoprene fabric with galvanised steel side strips, providing a strong, flexible and airtight connection suitable for HVAC and ventilation applications.

Supplied in a 25 metre roll with a 100mm flexible neoprene section between two 45mm galvanised steel strips.

Features

• Helps reduce noise and vibration transfer

• Black neoprene flexible fabric

• Galvanised steel side strips

• Strong, airtight seam construction

• Fire retardant

• Flexible connection allows for equipment movement

• Easy to cut and fabricate

• Suitable for commercial, industrial and residential HVAC systems

• Supplied in a 25m roll

Specifications

Specification	Details
Product Code	FVA2545100NEO
Material	Neoprene / Galvanised Steel
Steel Strip Width	45mm each side
Flexible Fabric Width	100mm
Overall Width	190mm
Roll Length	25m
Operating Temperature	Approx. -30°C to +80°C
Colour	Black
Property	Fire Retardant

Applications

Suitable for flexible connections between rigid ductwork and:

• Fans

• Air handling units

• Ventilation equipment

• Other duct-connected HVAC equipment

The flexible section helps isolate vibration-producing equipment from the rigid duct system, reducing the transmission of vibration and associated noise through the ductwork.
