Grille Boot – 900 x 450 with 350Ø Top Entry

Lightweight R1.0 Insulated Grille-to-Duct Adaptor

Not your average grille boot.

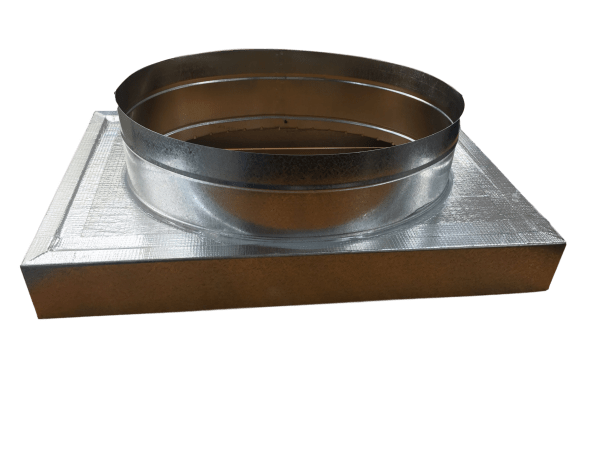

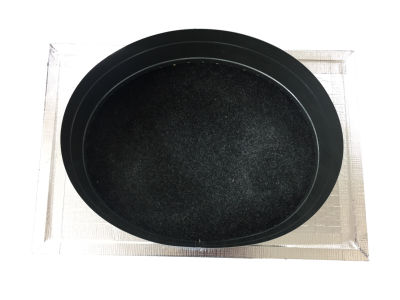

Manufactured by Airflow Engineering, this insulated grille boot provides a strong, lightweight connection between a 900 x 450 mm grille and 350 mm Ø duct.

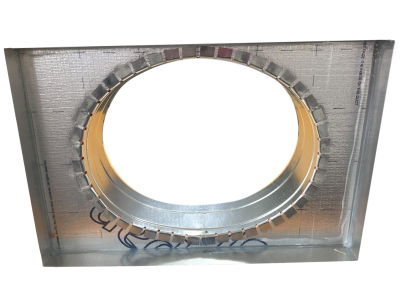

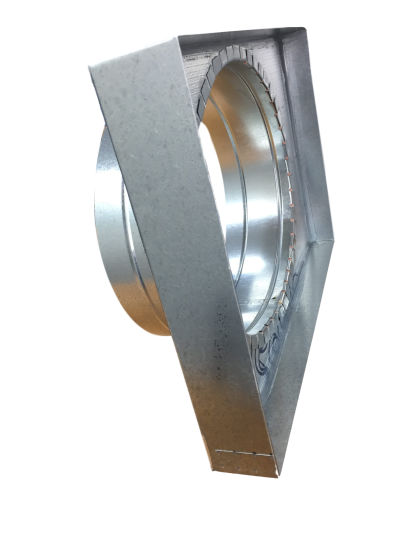

The boot combines a 100 mm deep steel grille frame with a lightweight PIR pre-insulated panel body and metal duct spigot, providing a robust finished fitting without the weight of a fully sheetmetal insulated boot.

With an insulation rating of approximately R1.0, the PIR construction provides the required insulation as part of the boot itself, eliminating the need for additional external lagging.

Why Choose an Airflow Insulated Grille Boot?

• Lightweight – Easier to handle, position and support in ceiling spaces
• R1.0 Insulated – Insulation is incorporated into the boot
• Strong Steel Grille Frame – 100 mm deep for a secure grille connection
• Metal Duct Spigot – Suitable for connection to flexible or rigid duct
• Quality PIR Construction – Strong, clean and professional finished fitting
• No Additional Lagging Required – Supplied as a complete pre-insulated boot
• Airflow Manufactured – Made by Airflow Engineering

Specifications

• Grille Size: 900 x 450 mm
• Duct Connection: 350 mm Ø
• Entry: Top Entry
• Frame Depth: 100 mm
• Frame Construction: Steel
• Body: PIR Pre-Insulated Duct Panel
• Panel Thickness: 20 mm
• Insulation Rating: Approx. R1.0 m²K/W
• Duct Connection: Metal spigot
• Suitable For: Flexible or rigid duct
