Fully Wired Circular Duct Heater – 200Ø – 0.75kW – 1 Phase – 1 Stage

Product Code: AC200-0750FW

The AC200-0750FW Fully Wired Circular Duct Heater is a 200mm diameter, 0.75kW electric duct heater manufactured by Airflow Engineering (SI) Ltd.

Designed for installation within circular duct systems, the heater is supplied fully wired and ready for connection, with the required isolator, fuses, contactor and controls incorporated into the heater assembly.

Airflow circular duct heaters use electric resistance elements mounted within a galvanised steel casing and are designed to provide controlled supplementary heating within HVAC and ventilation systems.

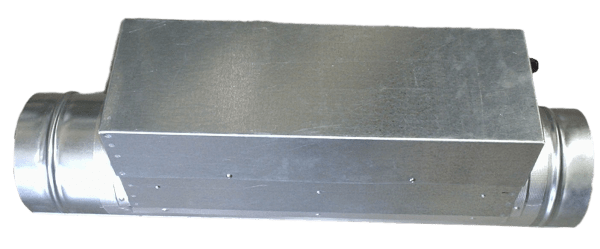

Fully Wired Heater Assembly

This model is supplied as a complete 1-stage heater assembly incorporating:

• Isolator

• Fuses

• Contactor

• High-temperature safety cut-out

• Differential air pressure switch

• Digital temperature controller

The incorporated safety controls help ensure the heater operates only when the required airflow conditions are present and provides protection against excessive temperatures.

Specifications

Specification	Details
Product Code	AC200-0750FW
Duct Diameter	200mm
Voltage	230V
Phase	1 Phase
Input Power	750W
Input Current	3.3A
Minimum Air Velocity	0 m/s (Suitable for Still Air)
Heating Stages	1
Heater Type	Fully Wired Circular Duct Heater

Equipment

Component	Specification

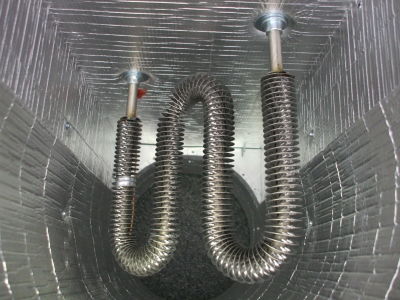

Heating Element	F1129W0750 – 0750W Element
Number of Elements	1
Manual Over-Temperature Control	LM7 – Fixed Setting 120°C
Differential Air Pressure Switch	Belimo Differential Pressure Switch
Air Pressure Termination Kit	Air Pressure Differential Fixing Kit
Digital Temperature Controller	Full Gauge MT-512E 2HP
Fire-Retardant Duct Lining	Thermobreak Fire-Retardant Foam
Tube & Terminal Box Construction	24 Gauge Galvanised Steel

Dimensions

Dimension	Size
Diameter – A	200mm
Overall Length – B	1000mm
Terminal Box Height – C	200mm
Element Length – D	164mm
Terminal Box Length – E	600mm

Important Information

The minimum specified airflow must be maintained whenever the heater is operating.

Electrical connection, installation and commissioning must be completed by suitably qualified tradespeople and in accordance with the heater documentation and applicable New Zealand requirements.

Manufactured by Airflow

This duct heater is manufactured and wired by a registered electrician from Airflow Engineering (SI) Ltd in Christchurch, New Zealand, combining the heater casing, element, controls and electrical components into a complete ready-to-connect assembly.

Why Choose an Airflow Duct Heater?

Airflow duct heaters are a premium heater and are priced accordingly, reflecting the components, controls and safety features incorporated into each unit.

We use robust finned heating elements, together with a differential air pressure switch that monitors airflow and allows the heater to be mounted horizontally or vertically where suitable.

Our fully wired heaters incorporate over-temperature protection, a differential air pressure switch and a digital thermostat, all built into a complete heater assembly.

For us, the priority is a robust, well-controlled duct heater with the appropriate safety features built in.
