Isolator Bobbin TA30/30

Indent 1-2 days

Category

Bobbin Isolators

Code

TA30/30

Brand

RRP

$35.00

Minimum quantity

1

$30.44

Description

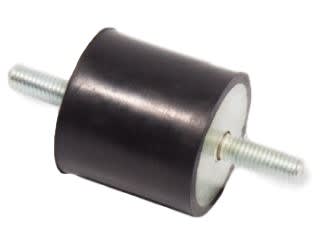

A supplementary range of cylindrical mountings for a wide range of applications. They can be loaded either in compression or shear taking into consideration individual demands for actual applications.

Manufactured in natural rubber hardness 40oIRH or 60oIRH .

A - Length

30mm
D - Diameter 30mm
Durometer - IRH 60
Stud Size M8 x 20
Max Load - Compression 53kg
Max Deflection - Compression 3.7mm
Max Load - Shear 21kg
Max Deflection - Shear 8.4mm
