Isolator Bobbin TA20/25

Indent 1-2 days

Category

Bobbin Isolators

Code

TA20/25

Brand

RRP

$25.00

Minimum quantity

1

$21.74

Description

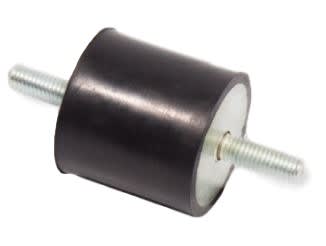

Novibra Bobbin A20-25B

A supplementary range of cylindrical mountings for a wide range of applications. They can be loaded either in compression or shear taking into consideration individual demands for actual applications.

Manufactured in natural rubber hardness 40oIRH or 60oIRH .



A - Length 25mm
D - Diameter 20mm
Durometer - IRH 60
Stud Size M6x15
Max Load - Compression 22.5kg
Max Deflection - Compression 3.2mm
Max Load - Shear 9kg
Max Deflection - Shear 6mm
